stainless steel welding studs

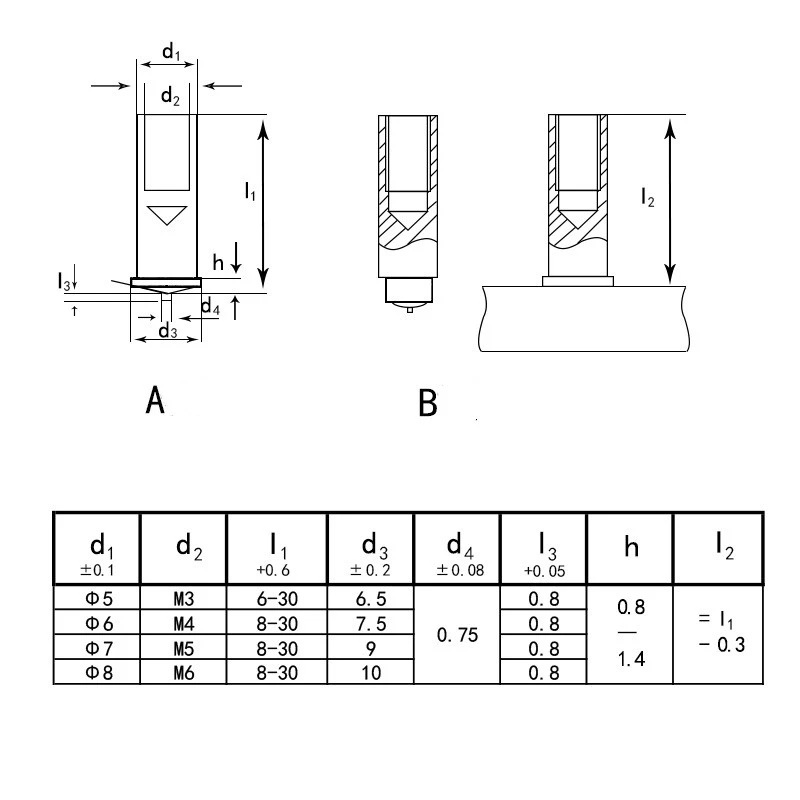

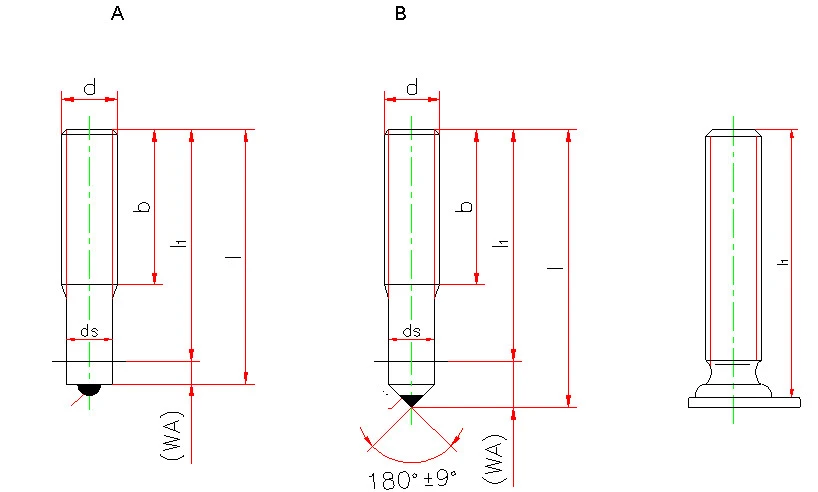

Specifications of stainless steel welded studs

Common thread specifications include M3, M4, M5, M6, M8, etc.

Lengths range from 6mm to 30mm‌12.

For example, the specifications of 304 stainless steel welding studs are M8*50

Different sizes and materials can be customized

‌Corrosion Resistance‌: Stainless steel welding studs are made of stainless steel and have excellent corrosion resistance. Stainless steel material can be used for a long time in various harsh environments without damage, especially in harsh environments such as humidity and salt spray.

‌High Strength‌: Stainless steel welded studs have high strength and high toughness, and can withstand large tensile and shear forces, ensuring the firmness and stability of the connection. This characteristic makes it excellent in situations where heavy loads are required.

‌Long lifespan‌: Due to the corrosion resistance and high strength of stainless steel welded studs, their service life is relatively long, which can reduce the frequency of maintenance and replacement and reduce long-term use costs‌.

‌Easy to Process‌: Stainless steel welded studs are easy to cut, bend and weld, allowing for various processing during manufacturing and installation. This characteristic makes stainless steel welded studs more flexible and convenient in various industrial applications‌.

‌Wide Application‌: Stainless steel welded studs are widely used in construction, machinery, ships and other fields. In the field of construction, it is used for the connection and fixation of bridges, highways, tunnels and other projects; in the field of machinery, it is used for the connection and fixation of various equipment and machines; in the field of ships, it is used for the connection and fixation of the decks, hulls and other parts of ships.

.

1. Material preparation
The materials required for stud production are usually steel, stainless steel, etc., which require high quality and smooth surface. First, material screening and cutting are required to ensure that each part has standard dimensions and high precision.
2. Processing
The production of studs is mainly divided into three steps: turning, tapping and drilling. During the turning process, attention should be paid to the selection of the blade and the adjustment of the cutting parameters so that the diameter and length of the stud can be accurate. During the tapping process, it is necessary to select a mold of the corresponding size according to the needs so that the stud firmness and load-bearing capacity meet the requirements. The drilling process is to create the spiral channel of the stud, usually using microhole electrode processing technology to ensure the accuracy and quality of the channel.

3. Heat treatment

The heat treatment of studs is to improve their properties, including strength, hardness, corrosion resistance and toughness. Carburizing, quenching and other technologies are usually used to make the surface hardness meet the requirements and the internal structure is dense, thereby improving the quality and reliability of the entire stud.

4. Surface treatment

Surface treatment is for aesthetics and corrosion resistance, and the main steps include pickling, polishing, chrome plating, etc. Pickling is to remove the oxide layer and impurities on the surface, making the stud surface smoother and of more stable quality. Polishing is to make the stud surface smoother and improve the texture and aesthetics. Chrome plating is to increase the corrosion resistance of the stud surface and extend its service life.

Construction field: In the construction field, stainless steel welded studs are often used in large bridges, high-rise buildings, subway tunnels, docks and other structures. Due to its corrosion resistance, high strength and long life, stainless steel welded studs are indispensable in these situations that require long-term use. In addition, stud welding also plays an important role in the fixation of the metal frame of the glass curtain wall, providing a beautiful and stable structure‌.

Machinery manufacturing field: In the field of machinery manufacturing, stainless steel welded studs are widely used in various means of transportation and equipment, such as cars, motorcycles, airplanes, trains, ships, etc. These application scenarios require materials with high strength, corrosion resistance and light weight, and stainless steel welded studs exactly meet these requirements.

Aerospace field: In the aerospace field, stainless steel welding studs are also indispensable fasteners. Since the aerospace field has very high requirements for materials, which require high strength, corrosion resistance and lightweight, stainless steel welding studs are widely used as fasteners for various components.

Chemical industry: In the chemical industry, since the use of corrosive substances is often involved, stainless steel welding studs are widely used in the manufacture of fasteners for various equipment and pipelines due to their corrosion resistance. This material can withstand chemical corrosion, ensuring stable operation of the equipment

‌Other application scenarios: stud welding technology is also used in sheet metal engineering, electronic industry switch cabinets, testing and medical equipment, food industry, home appliance industry, communication engineering, industrial complete sets of cookers, office and bank equipment, coin-operated cargo machines, etc. fields. These applications require efficient and durable connection technology, and stud welding technology can provide fast and strong connections.‌

Applications: Designed for specialized applications requiring unique specifications.

Installation method: Customized installation according to specific application requirements.

Benefits: Customized specifications to meet unique project needs, ensuring optimal performance.

Custom Sizes: We offer bolts in standard and custom sizes to meet specific project requirements. Our advanced processing capabilities ensure a perfect fit for your application.

Material Selection: Depending on the application and environmental conditions, we offer stainless steel welded studs made of stainless steel, galvanized steel, carbon steel and other specialty materials.

Surface Treatment: To enhance corrosion resistance and durability, we offer a variety of pickling, polishing, chrome plating, etc. Pickling is to remove the oxide layer and impurities on the surface, making the stud surface smoother and of more stable quality.‌
